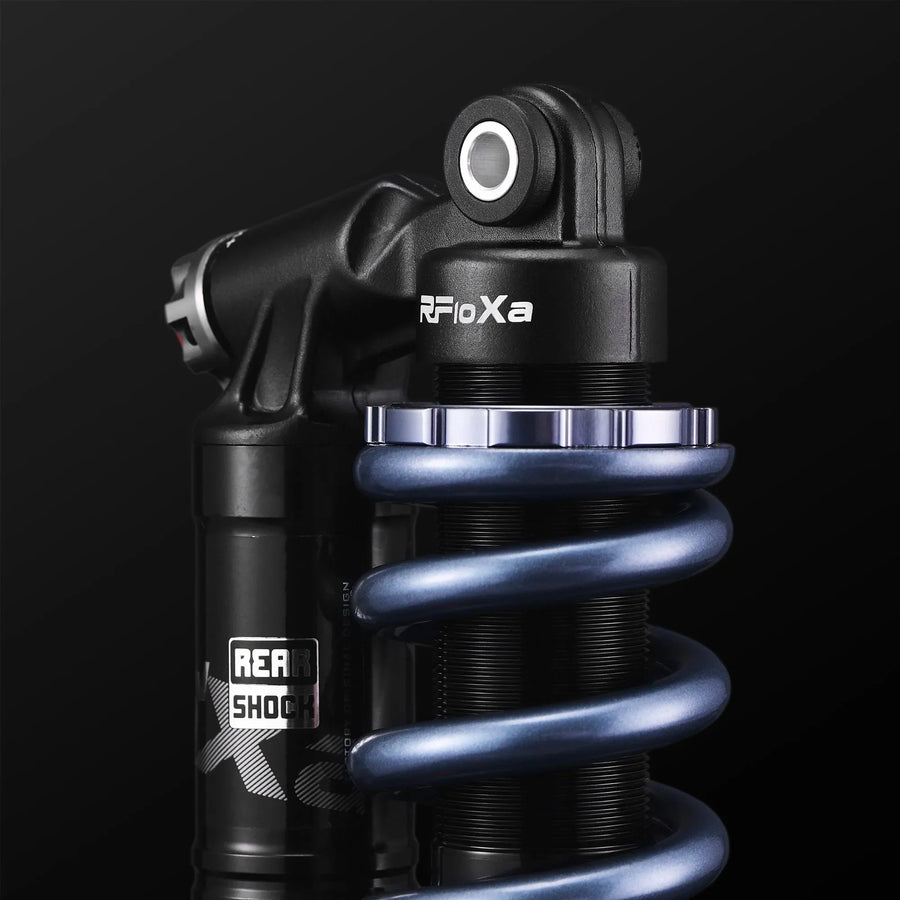

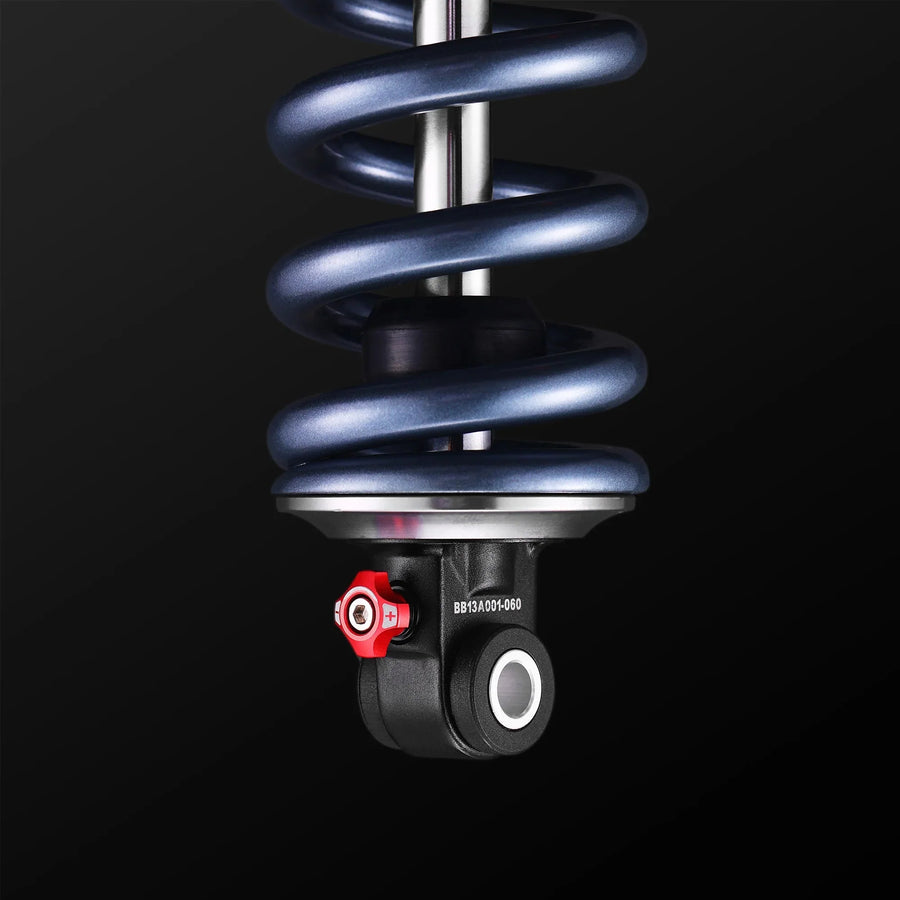

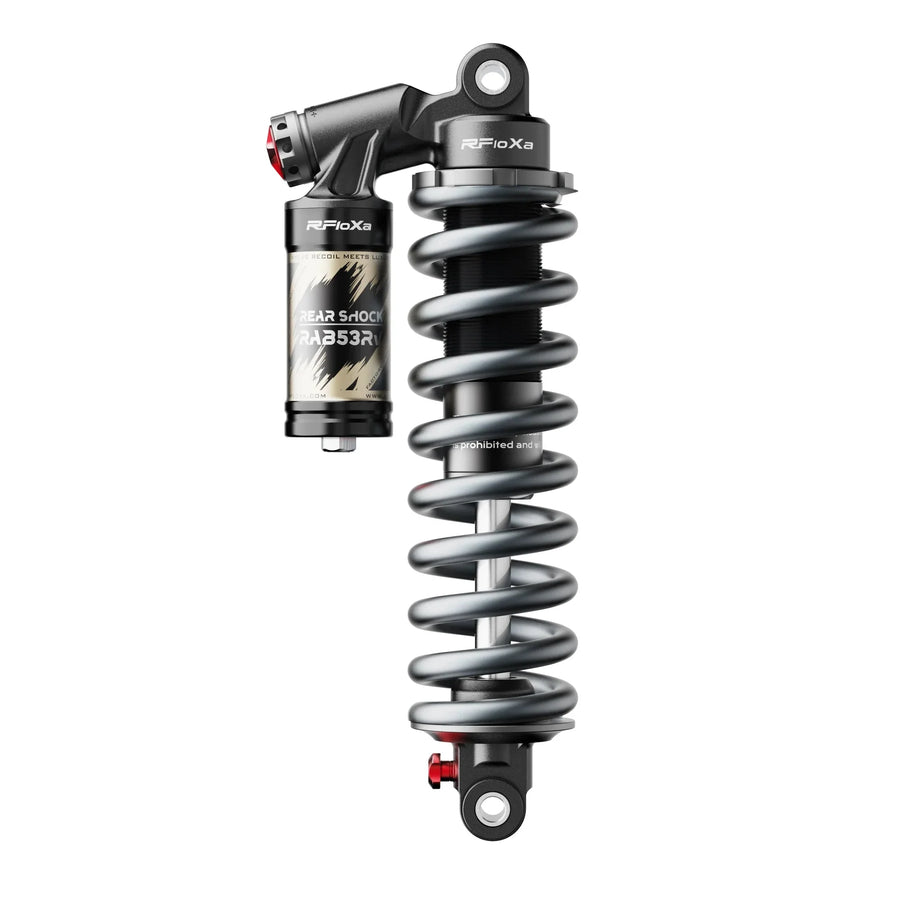

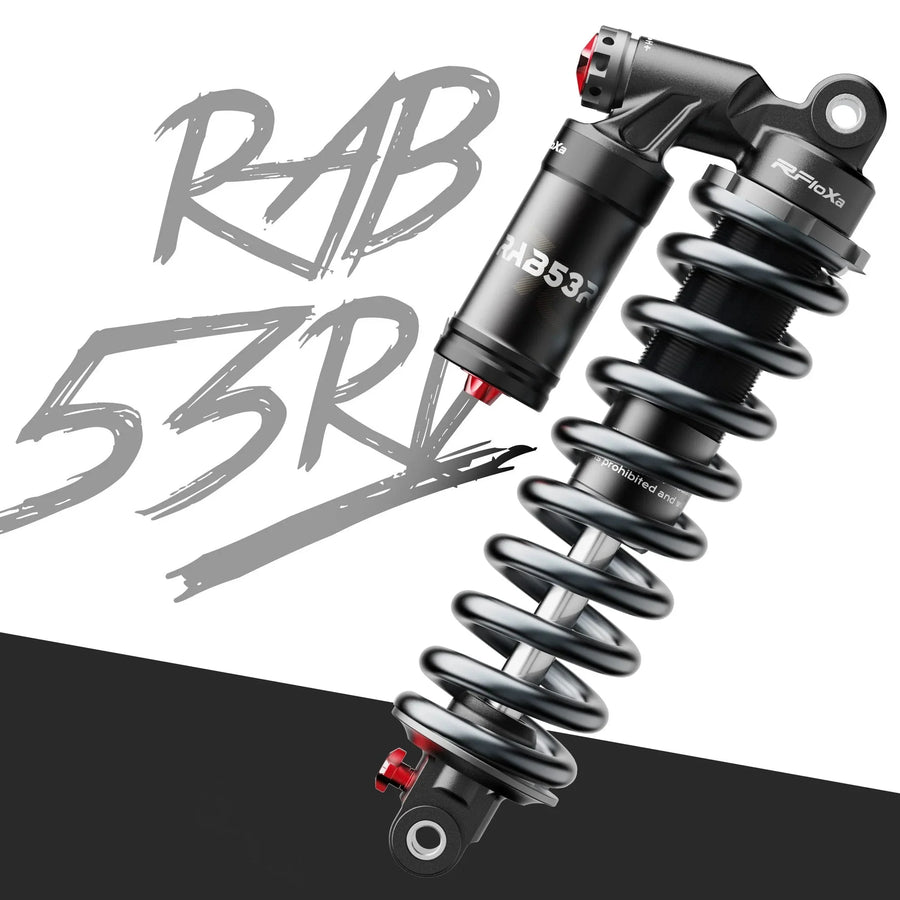

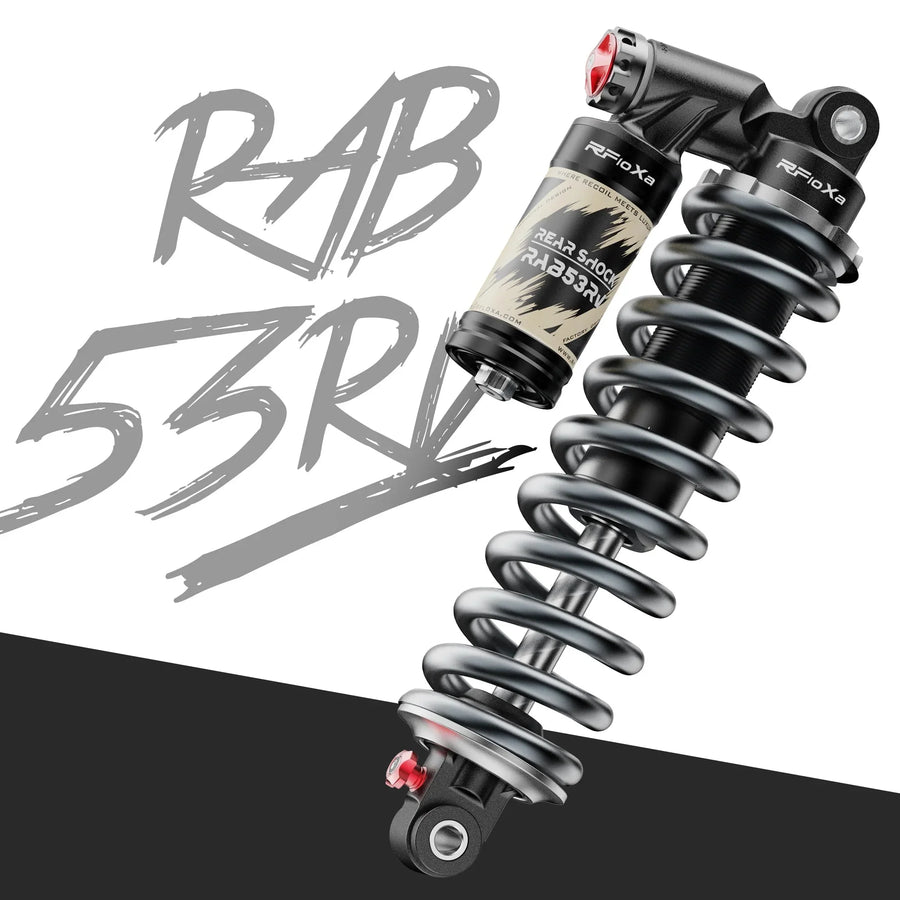

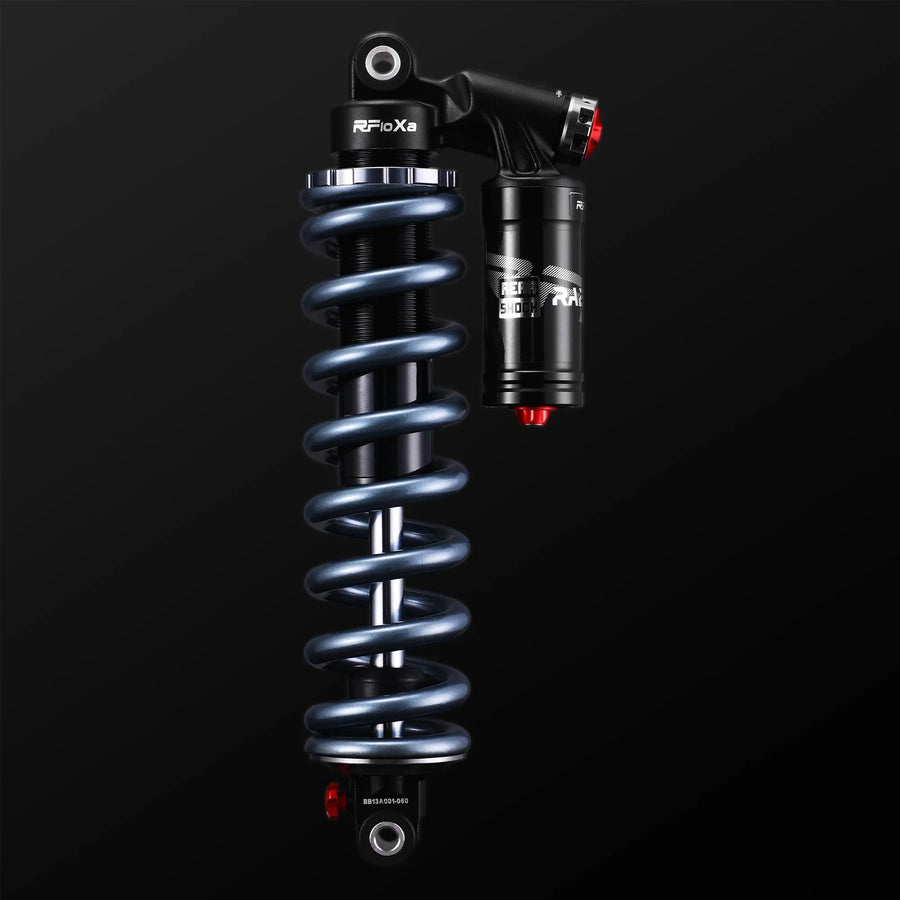

RFloXa RAB53RV Rear Shock

The RFloXa RAB53RV is a piggyback-reservoir rear shock with full damping adjustability, built for e-bikes, bicycles, and off-road electric bikes. Available in 450 lb and 550 lb spring rates (265mm).

Note: spring preload is recommended at around 10mm; excessive preload leads to spring deformation and side wear.

It uses an external nitrogen reservoir and an oil-gas separated damping structure, with multi-stage rebound, high-speed compression, and low-speed compression adjustment. A rubber bladder in the air chamber reduces heat-induced damping fade and sharpens small-bump response.

Damping adjustments:

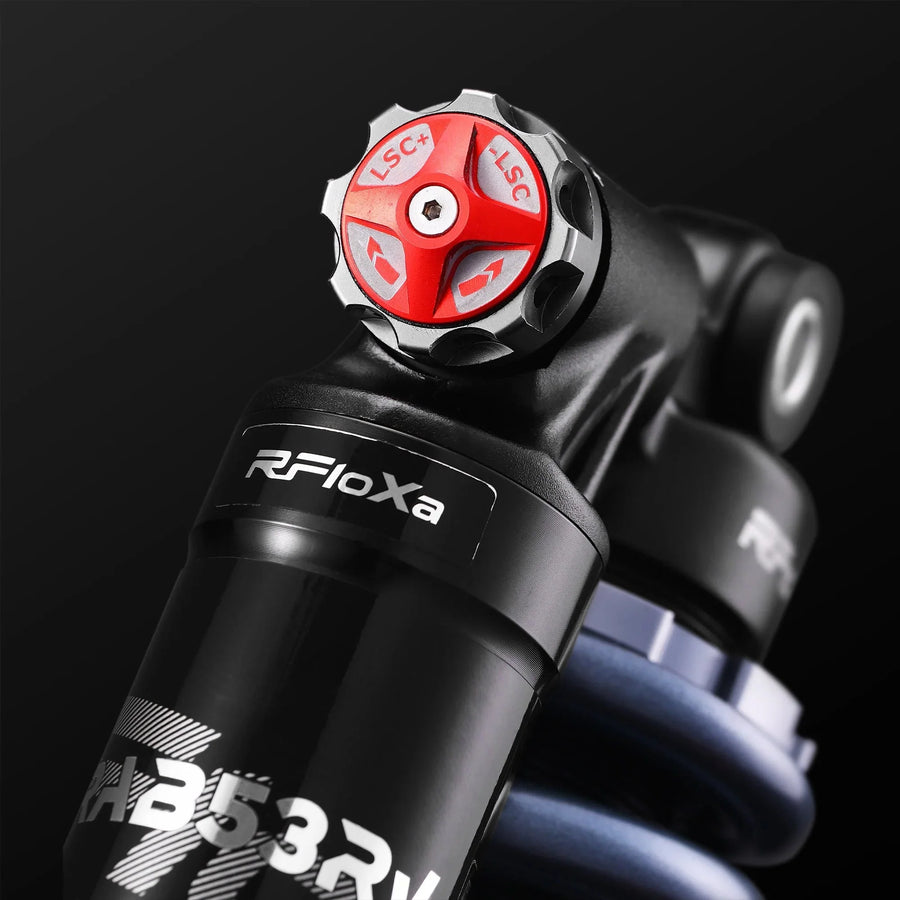

• Low-Speed Compression (LSC): controls response to gradual impacts and low-speed movement - reduces bounce during pedaling, climbing, and rough terrain.
• High-Speed Compression (HSC): controls response to rapid impacts like drops and sudden bumps - keeps the shock from blowing through its stroke.

Features:

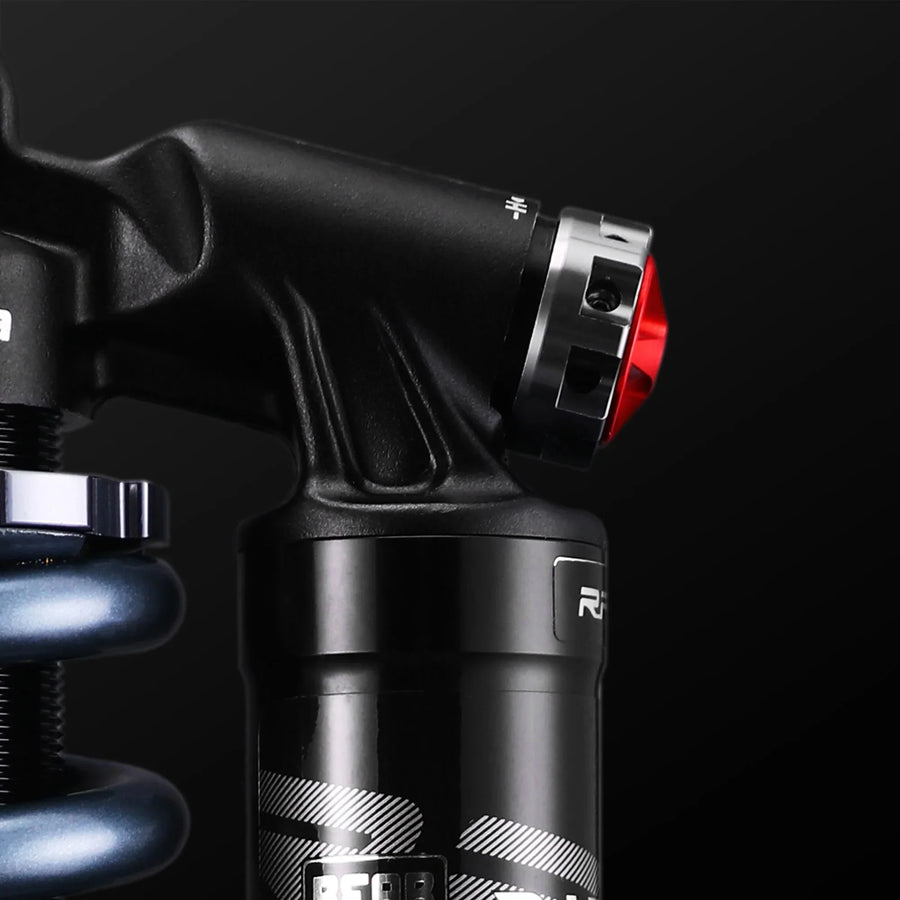

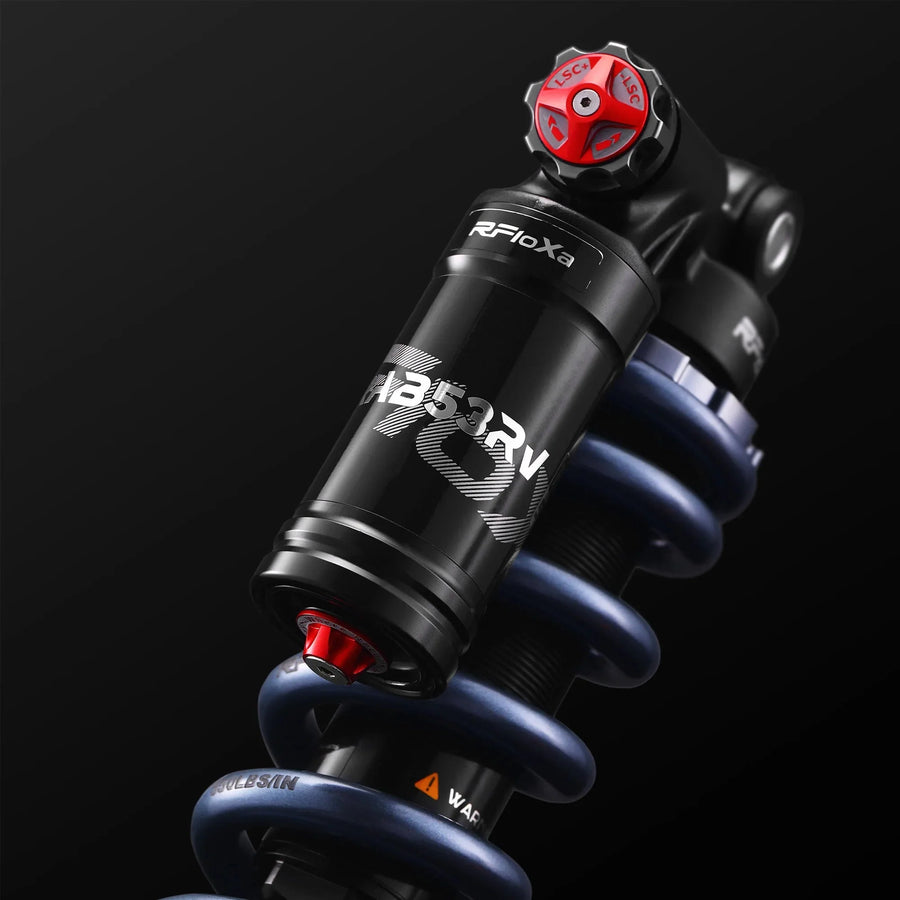

• External nitrogen reservoir
• Oil-gas separated damping structure
• Multi-stage rebound, high-speed compression, and low-speed compression adjustment
• AL6061-T6 forged upper mount
• AL6061-T6 aluminum alloy main tube
• 42CRMO main shaft
• 55CRSI spring wire
• C-ring retainer spring base for stability
• Easy-to-remove spring design
• Rubber bladder in air chamber for enhanced small-bump absorption
• One-step lock compression adjuster

Fitment:

• Talaria MX3 / MX4 / XXX / MX5
• Altis Sigma
• E-Ride Pro S / SS 1.0 / 2.0 / 3.0 / SR
• Sur-Ron LBX, LBS, L1E
• Segway X-260 / X-160
• Rawrr Mantis
• 79 Bike Falcon M
• Ventus One
• RFN Apollo
• RERODE R1

Genuine RFloXa through our authorized dealer channel. The companion shock to the RAB50RC we stock - fitment confirmed with you before it ships.
