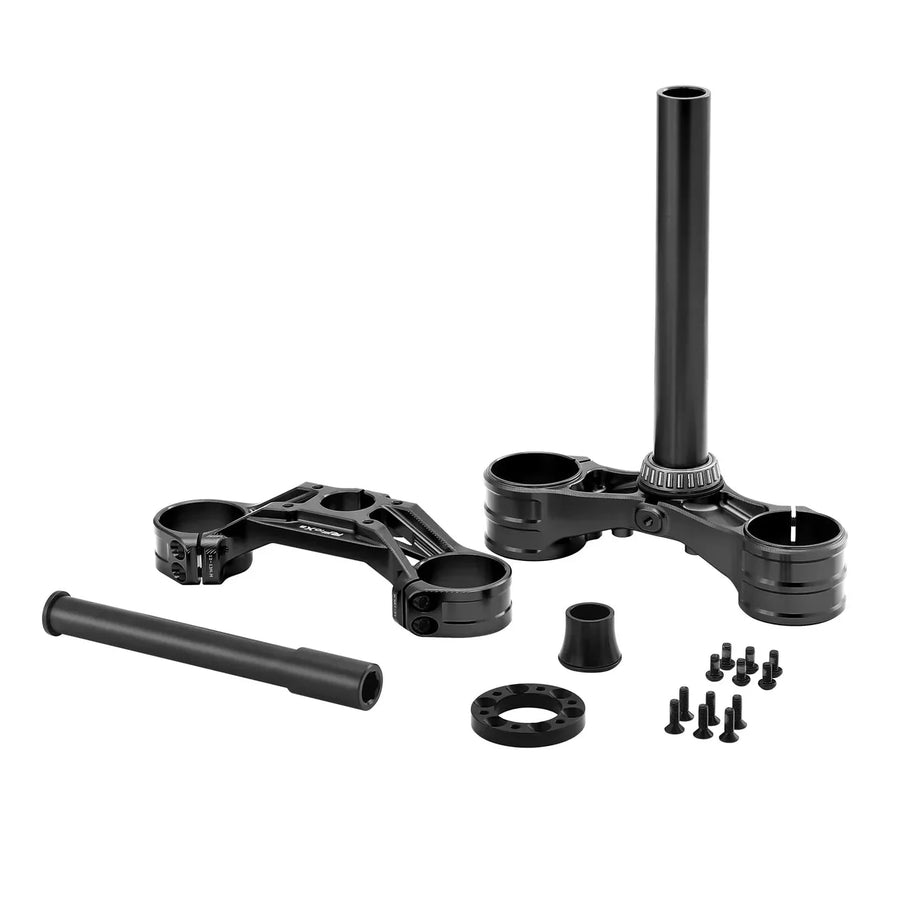

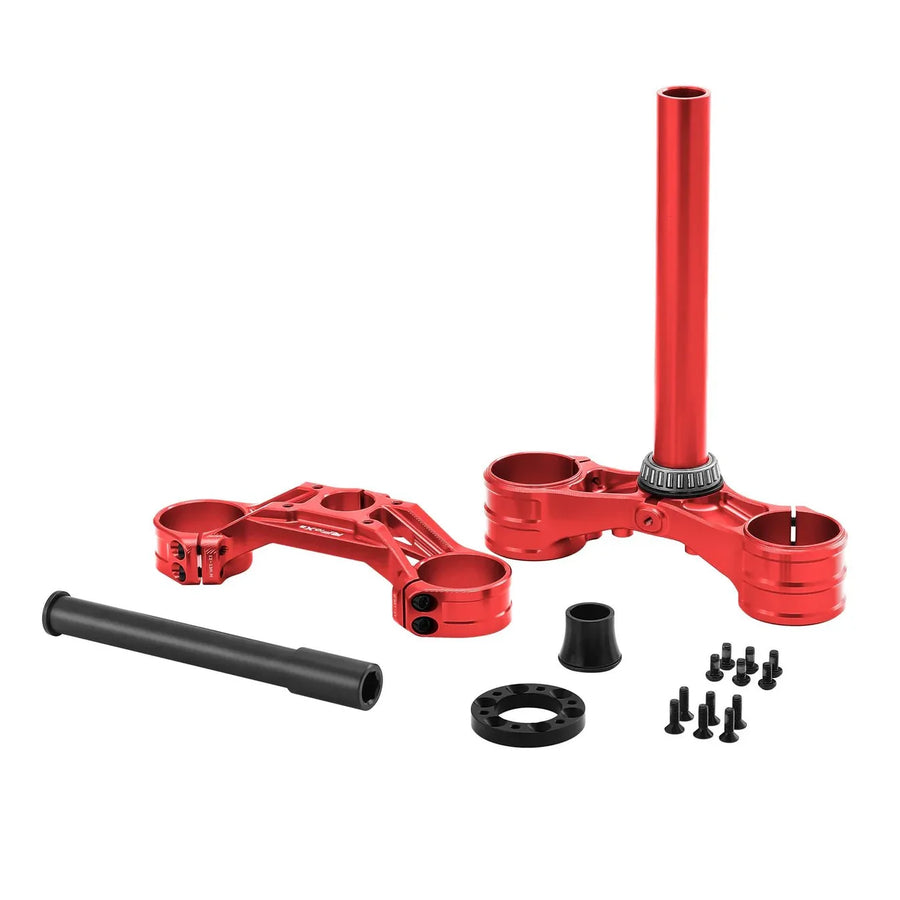

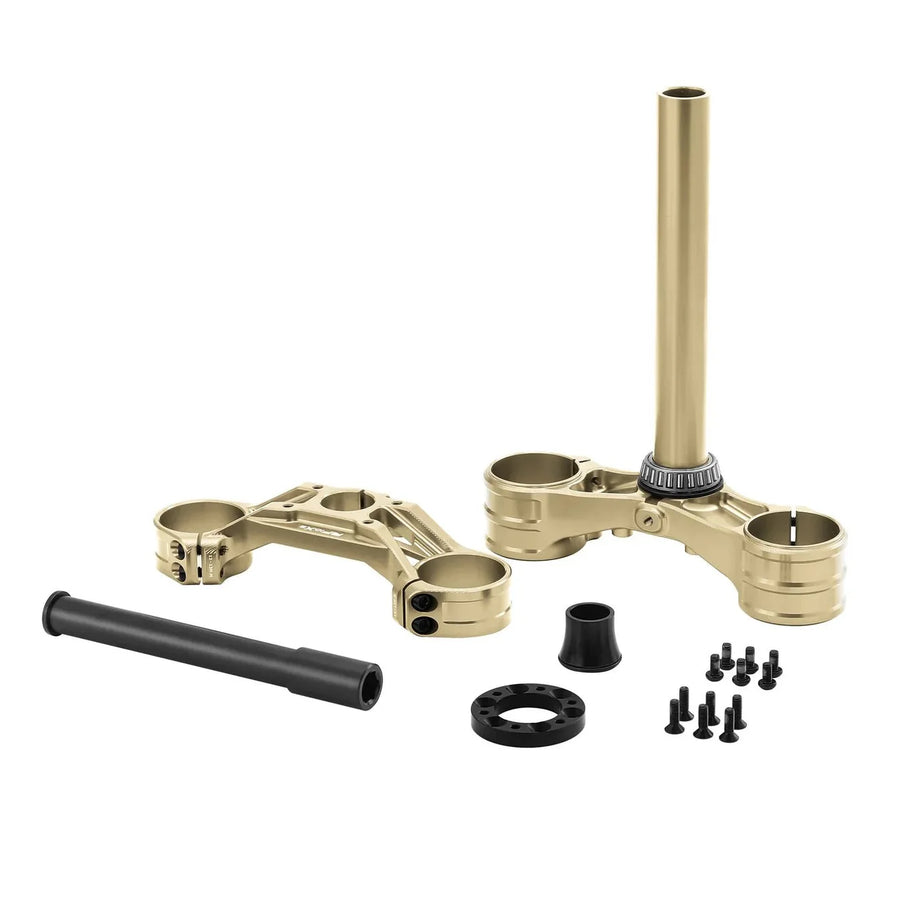

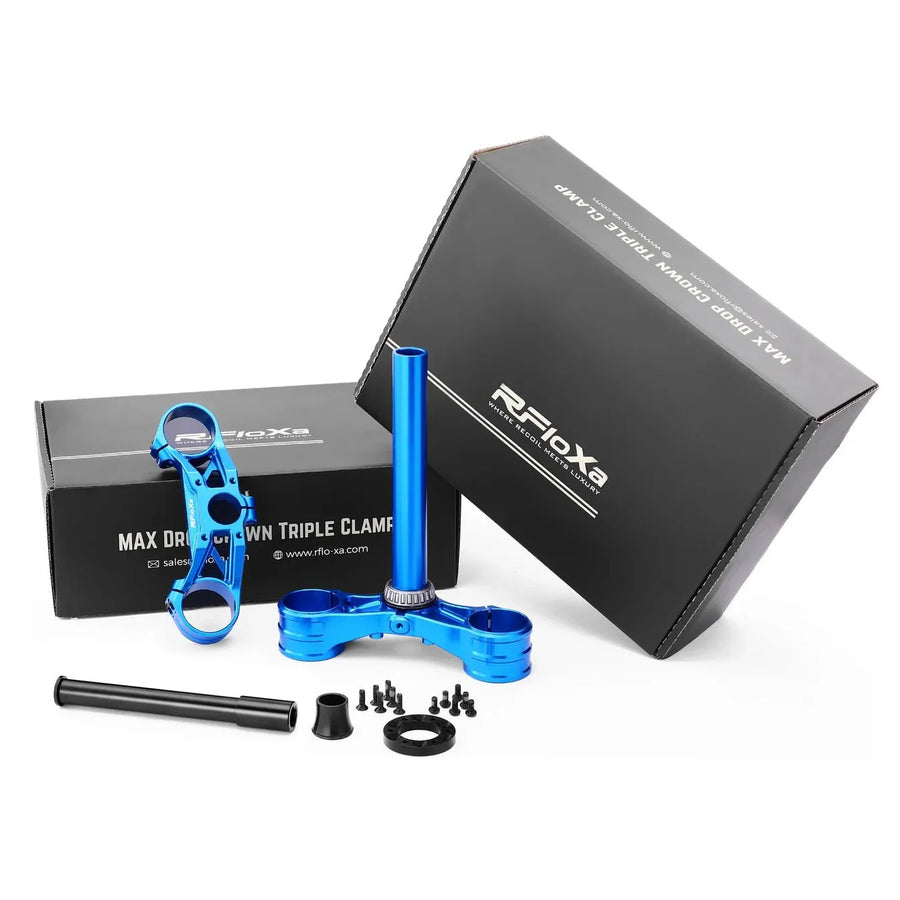

RFloXa Max Triple Clamp

The RFloXa MAX drop crown triple clamp is a widened clamp kit that maximizes the performance of RFLOXA and FastAce forks. It improves tire clearance, corrects steering geometry, and adds impact resistance, and the drop crown lets you lower the fork tubes beyond the factory position to dial in riding posture.

Crowns are machined from high-strength aluminum billet, with dual-row clamping screws up top and triple-row screws on the lower crown for rigidity. An AL7075 flange spacer offsets the brake rotor to the correct position, using a 12-screw staggered pattern (six on the spacer, six on the rotor) for even braking force.

• Material: High-strength aluminum billet crowns, AL7075 flange spacer
• Width: 16mm wider than OEM
• Drop: 17mm on the upper crown
• Tire Clearance: Up to 90mm width
• Clamping: Dual-row upper crown screws, triple-row lower crown screws
• Rotor Compatibility: 203mm standard, 220mm direct mount, 240mm or other sizes with additional brake mounts
• Weight: 1,630g
• Colors: Black, red, blue, purple, gold

Fitment: Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee, and E-Ride Pro equipped with RFLOXA forks (FCG31RVP / FCG32RCP) or FastAce forks (AHX12RV / ALX13RC). Not compatible with Volar or Rippin Moto braking systems without a collet adapter. Non-standard or modified wheel cores with non-factory dimensions may not fit correctly.

Genuine RFloXa through our authorized dealer channel. Tell us your platform and rider weight and we will confirm the right spec before it ships. Ships within 3 business days.
