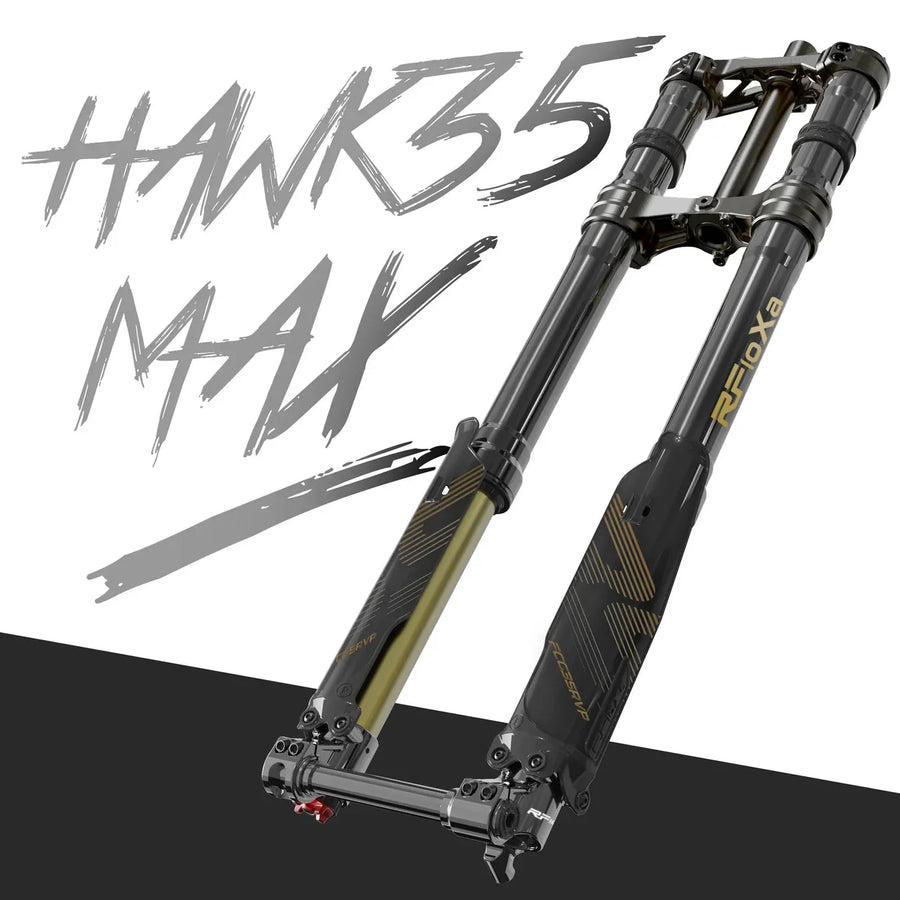

RFloXa Hawk35 Max Front Fork — E-Ride Pro SS 3.0 / SR

The RFloXa Hawk35 Max is an inverted oil-spring front fork built to the geometry of the E-Ride Pro 3.0 / SR. It ships preloaded with a bearing kit by default for direct installation with no extra parts required. If you need it without the bearing kit pre-pressed, leave a note with your order. The standard drop crown color is black; for a different crown color, add a note at checkout.

Spring weight, 203 mm travel fork (19 in / 21 in wheels):

• 45 lb spring - up to 100 kg
• 60 lb spring - 100-130 kg (ideal for heavy jumping)
• 45-60 lb progressive spring - 80-130 kg

Spring weight, 228 mm travel fork (19 in / 21 in wheels):

• 45 lb spring - up to 100 kg
• 55 lb spring - 100-130 kg

Specifications:

• Center distance: 750-800 mm
• Main piston travel: 203-228 mm
• Tube diameter: 37 mm
• Caliper mount spacing: 99.5 mm
• Disc brake size: 220 mm (upgradeable)
• Damping system: inverted oil-spring, multi-stage high-speed compression, low-speed compression, rebound, and spring preload adjustable
• Materials: AL6061-T6 forged aluminum (bottom brackets), AL7075-T6 aluminum (tubes)
• Spring wire: 55CrSi
• Triple clamp: CNC precision machined

Fitment: E-Ride Pro 3.0 / SR.
