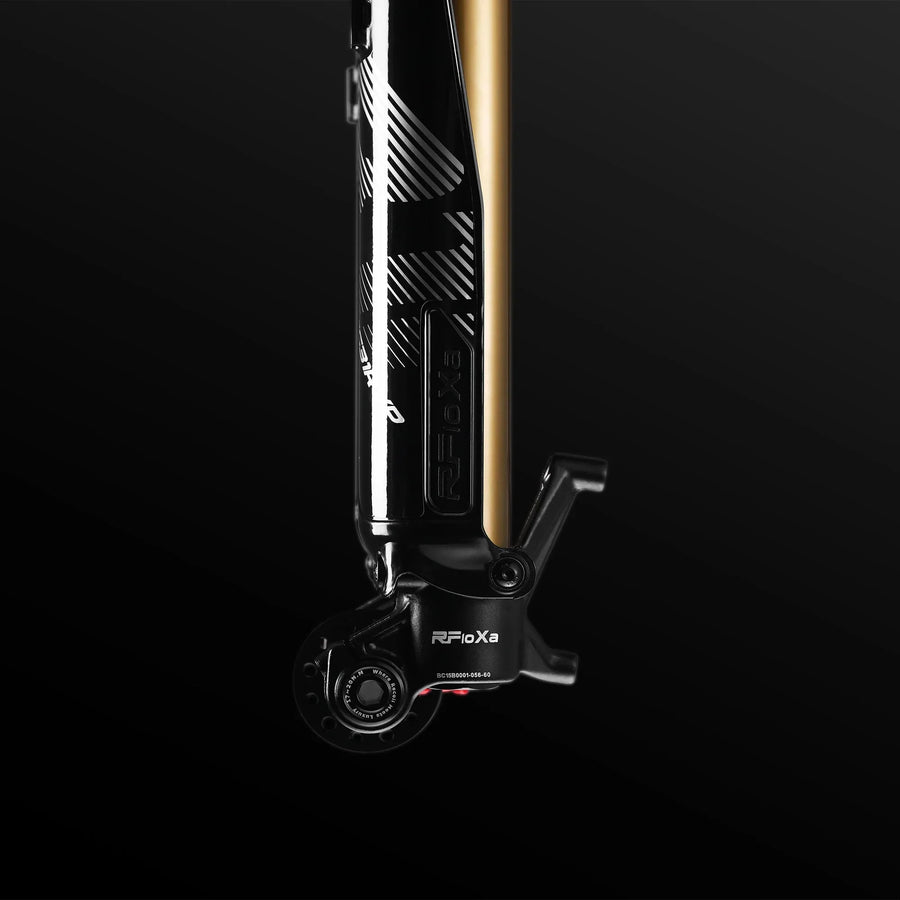

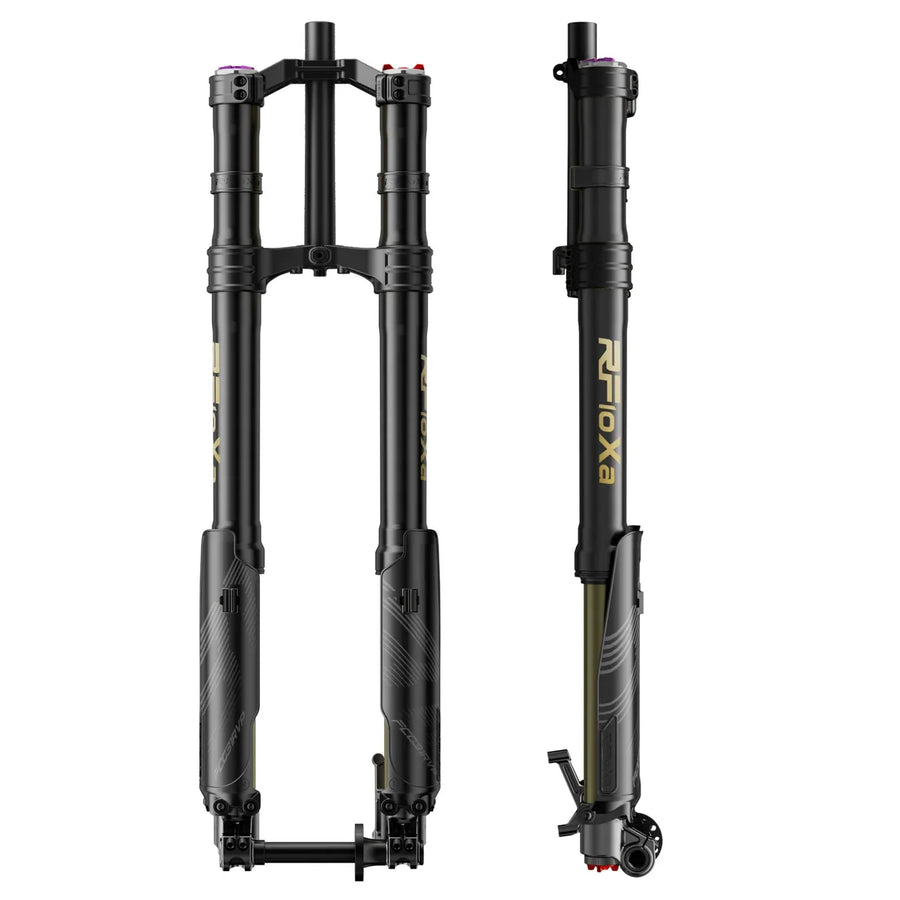

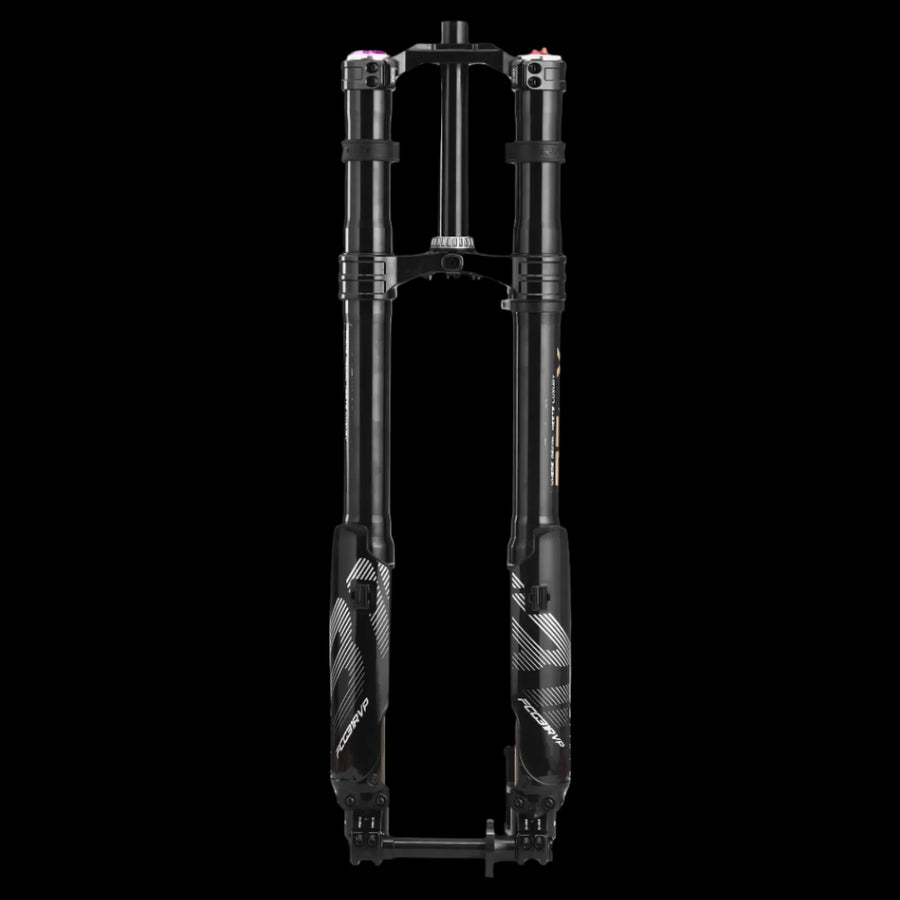

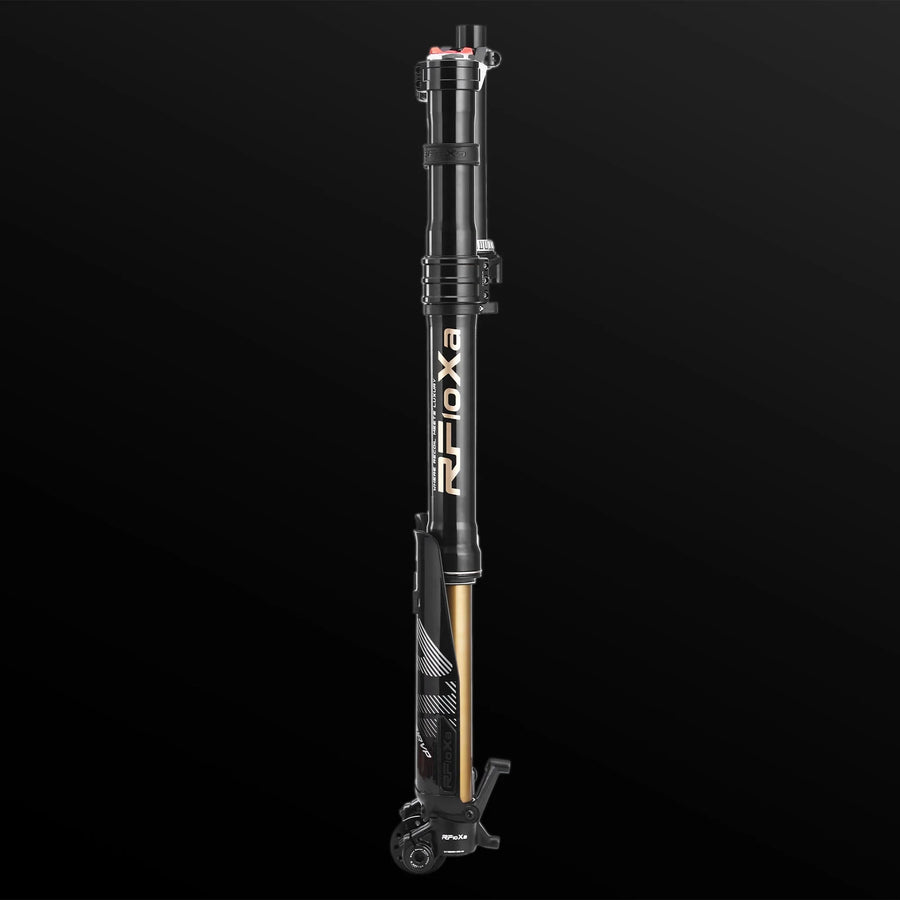

RFloXa Hawk31 Max Front Fork

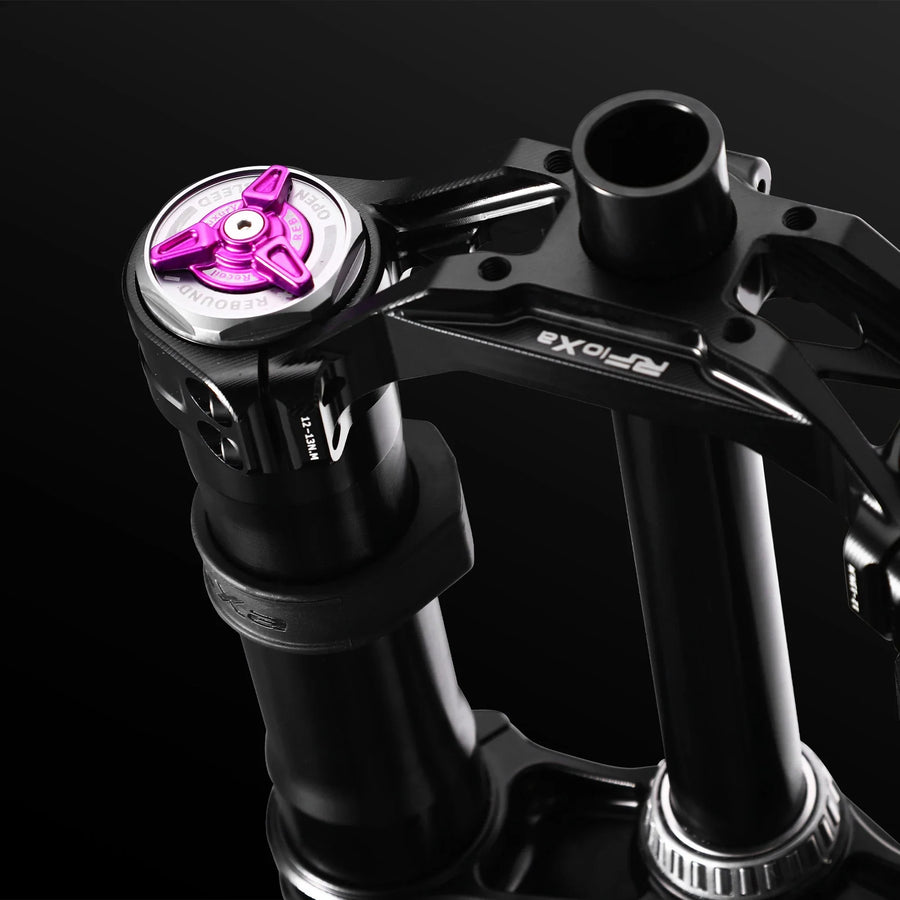

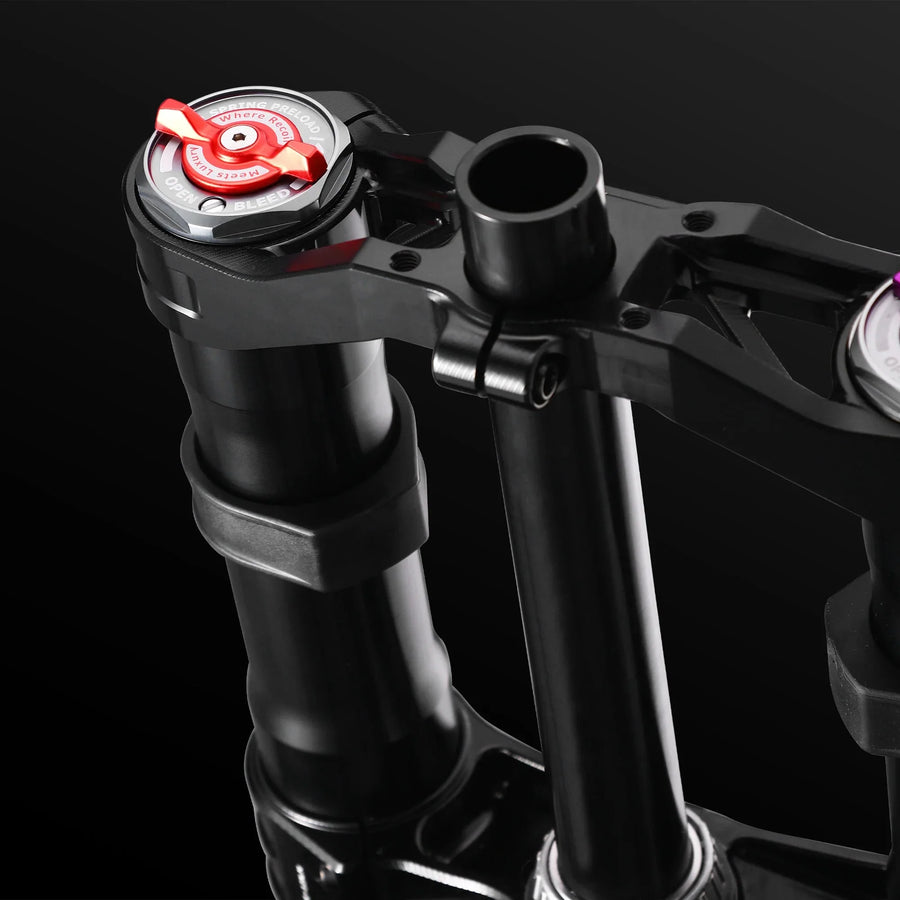

The RFloXa Hawk31 MAX is an inverted oil-spring front fork built for downhill and off-road electric dirt bikes, supplied with the Max widened drop-crown triple clamp kit. The kit includes upper and lower clamps, steering stem, raised flange, widened front wheel axle kit, and hardware. Triple clamp and steering stem are CNC-machined from billet and offered in black, purple, blue, red, and titanium gold.

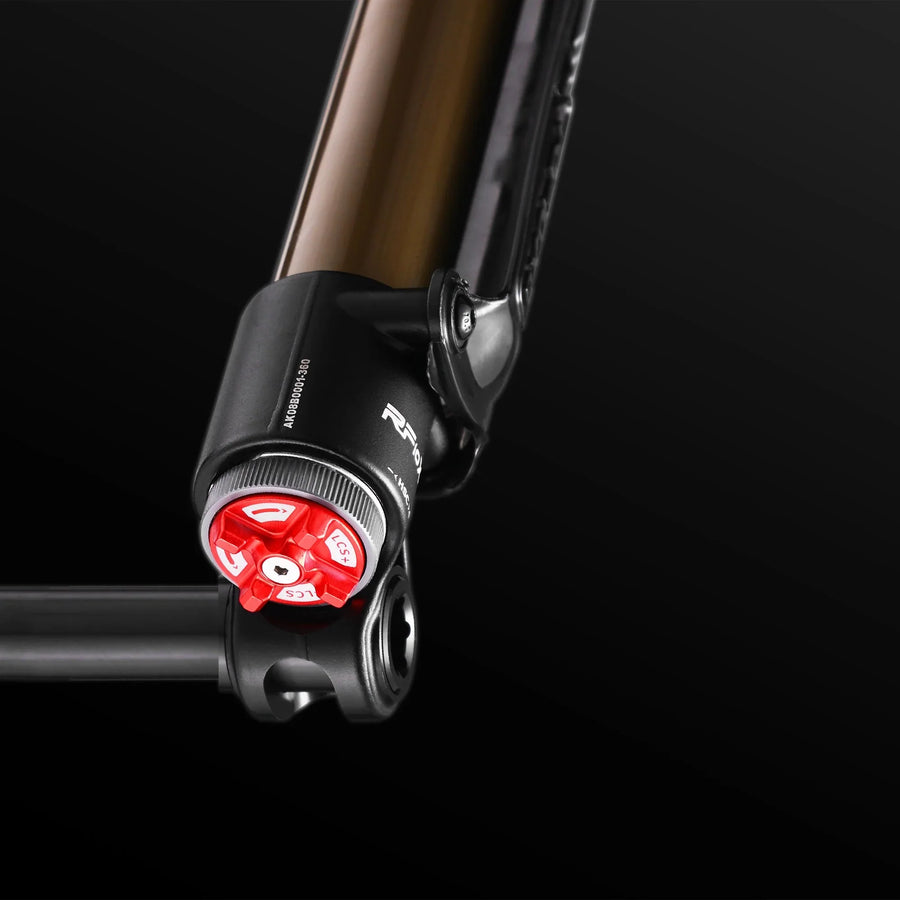

The fork runs asymmetrical left and right legs with an independent structure, multi-stage adjustment, dual compression valve plates, and an oil-pressure bottom-out design for strong end-of-travel support. Low-friction, low-freezing-point shock oil keeps damping consistent in extreme conditions.

• Center Distance: 750-800mm
• Main Piston Travel: 203-228mm
• Tube Diameter: 37mm
• Caliper Mount Spacing: 74mm
• Disc Brake Size: 203mm (upgradeable to 220mm)
• Damping System: Inverted oil-spring
• Adjustments: Multi-stage high-speed compression, low-speed compression, rebound, spring preload (manual knobs)
• Material: AL6061-T6 forged aluminum bottom brackets, AL7075-T6 aluminum fork tubes
• Spring Wire: 55CrSi
• Suitable For: Electric dirt bikes, downhill bikes

Fitment: Talaria MX3 / MX4 / XXX, Sur-Ron LBX / LBS / L1E, E-Ride Pro S / SS 1.0 / 2.0, Rawrr Mantis, 79 Bike Falcon M, Ventus One, RFN Apollo, RERODE R1.

Triple clamp fitment data is based on Talaria Sting MX3 / MX4 / MX5, Sur-Ron Light Bee, and E-Ride Pro data. Non-standard or modified wheel cores with non-factory dimensions may not fit correctly.
