EBMX

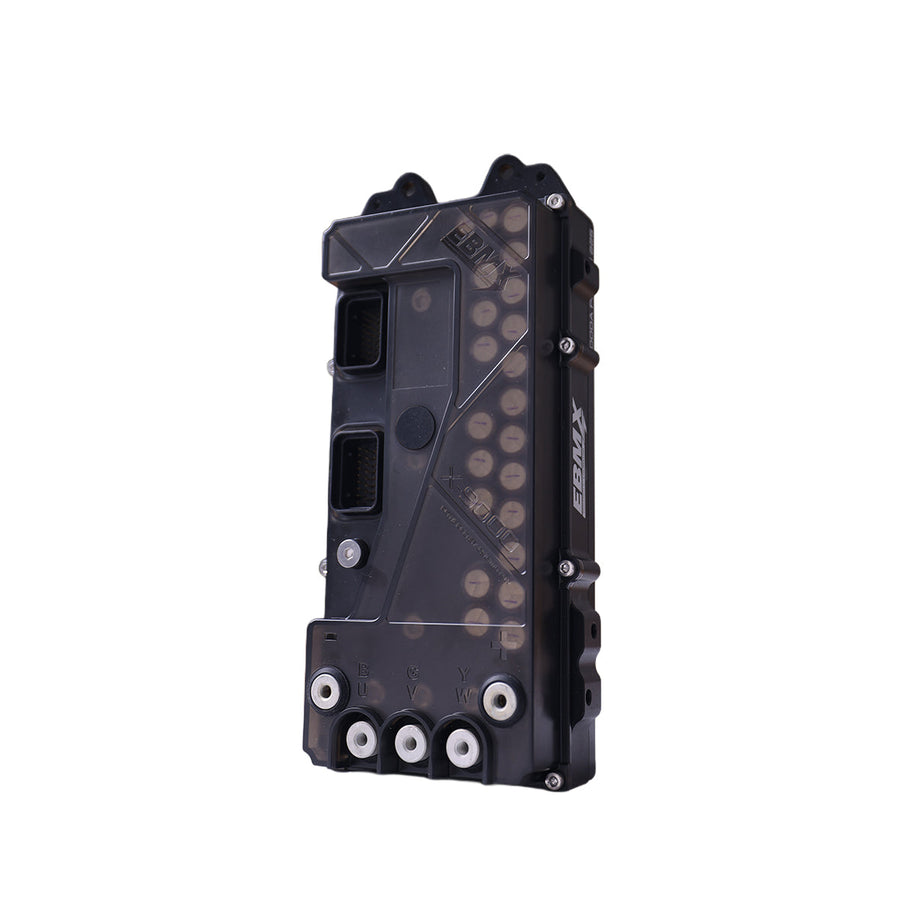

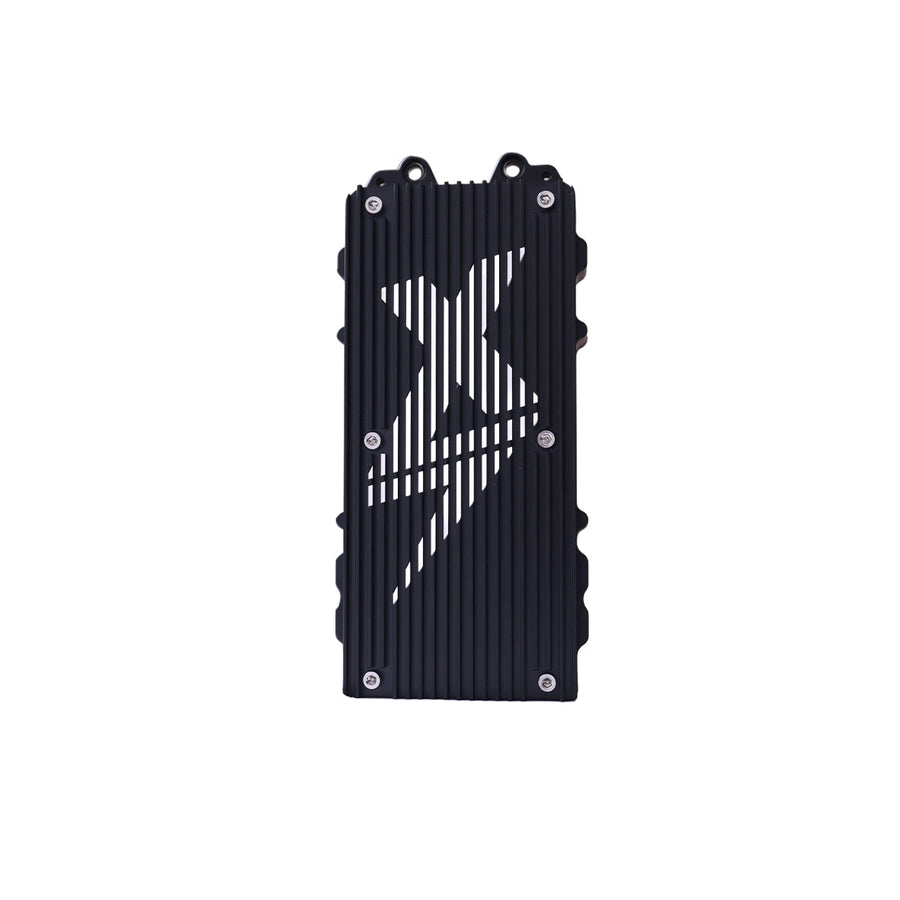

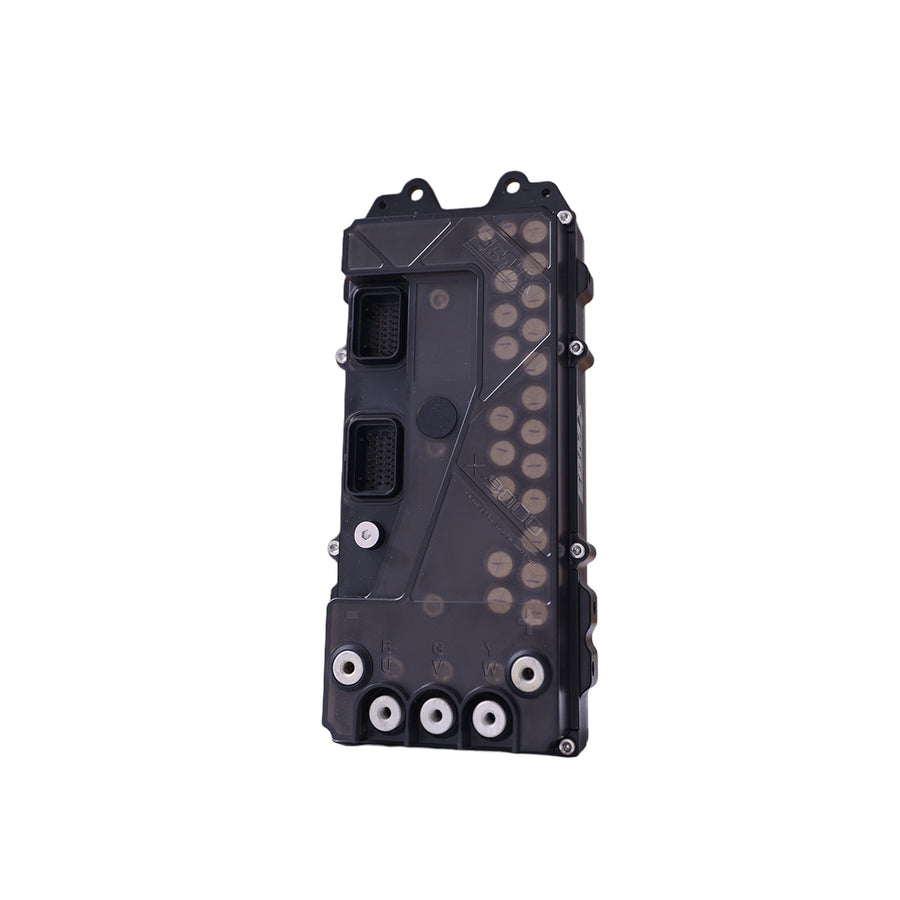

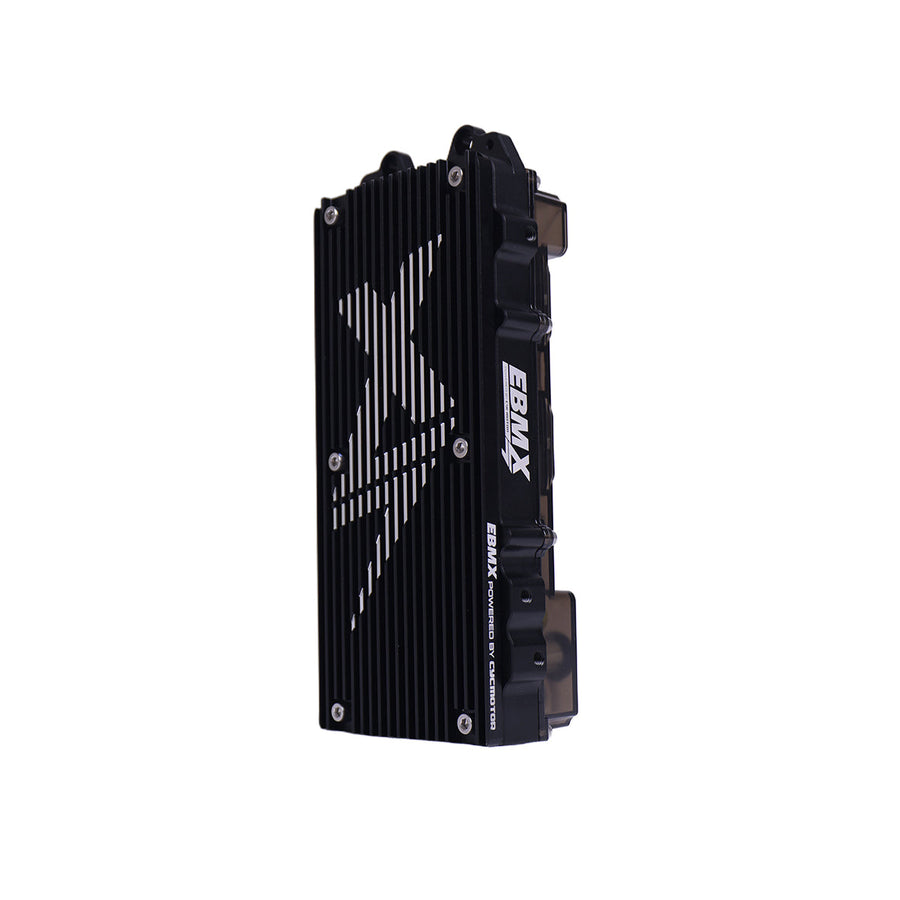

EBMX X-9000-V3 Controller

$1,164

Ships in 1–3 business days

Sourced & tested by riders
Install service at our Colorado Springs shop
Fitment questions? Text us — we ride these

Off-road / closed-course use unless your state says otherwise. Supermoto wheels do not make a bike street-legal — titling, lighting and registration are the rider's responsibility.

Confirm your exact model and year before ordering.— fits E-Ride Pro SR, E-Ride Pro SS, RERODE R1 and 5 more

Description

Built from the ground up for serious riders and racers, the EBMX X-9000_V3 is more than just a controller — it’s a complete performance ecosystem. With a re-engineered power stage, cutting-edge logic system, and a redesigned user interface, it’s the most advanced, rider-tuned controller on the market.

Whether you’re dominating urban streets, carving trails, or hitting the racetrack, the X-9000_V3 delivers unmatched power, precision, and customization.

This item does not include bike wiring harness or mounting kit. The X-9000 is also available to purchase in a kit for various bikes.

Power Meets Control

50kW Output | 1000A Phase Current | 1600A Burst
30 120V Infineon MOSFETs for performance and reliability under extreme conditions
Redesigned Multilayer PCB & CNC Copper Busbars for superior thermal control
Water-Cooling Option for race-level endurance
IP67 Rated & CNC Alloy Case – Built to take the punishment

Next Gen Logic

Industry-Leading 68 IO Support – Runs anything, from race bikes to full featured builds
Custom EBMX VESC Firmware with Field-Oriented Control (FOC) for silky smooth throttle control, enhanced motor control, and greater efficiency
Integrated IMU for Wheel Lift Assist – Fully programmable for launch control, anti-loop, or stunt mode
Dual Hall Throttle Ready – Two ADC inputs, increased throttle safety and reliability

Race-Ready, Rider Tuned

6 Fully Customizable Power Levels (Race + Street Modes)
Graphical UI for Throttle Tuning, Regen Braking & EBMX E-Clutch
Load & Go Battery Profiles – Over 15 plug-and-play setups
Preloaded Motor Tunes – 30+ motors supported out of the box
One-Touch Updates – OTA firmware & compatibility expansion

Built for the Bikes You Ride

SurRon Light Bee
SurRon Ultra Bee
Talaria MX3 / MX4/ MX5
Talaria XXX
E Ride Pro SS 2.0 (With V3 Battery Plug)
E Ride Pro SS 3.0 (With Breaker)
E Ride Pro SS 3.0 (Without Breaker)
E Ride Pro SR
ReRode R1
QS138 Motors

Colored Heatsinks available for purchase separately

*Please note all X-9000 sent from July 2025 will be Version 3. Colored v2 heatsinks are compatible with the V3 controllers. V2 Wiring harnesses are NOT compatible.

The current list of Motors that the X-9000 is compatible with is below:

OEM SurRon Light Bee
OEM SurRon Ultra Bee
OEM Talaria Sting MX3
OEM Talaria Sting R MX4
OEM Talaria Sting MX5
EBMX XLB-60
EBMX XTA-60
EBMX XUB-80
KO RS SurRon
KO F Spec SurRon
KO F Spec Talaria
QS138 – 90H
QS138 – 70H
OEM E Ride Pro SS 2.0
OEM E Ride Pro SS 3.0
OEM E Ride Pro SR

EBMX X-9000-V3 SPECIFICATIONS
RATED POWER	50kw (CONTINUOUS)
VOLTAGE	120v
WORKING VOLTAGE RANGE	48v – 93v (22S)
PHASE	1000A (continuous) 1600A (burst)
MOSFETS	Infineon
CONTROL PROTOCAL	Field Oriented Control (FOC) VESC
FEATURES	Build in IMU for integrated wheel-lift control Dual hall throttle ready X-Series App compatible for custom tuning Pre tuned for stock and aftermarket batteries Tuned for 30+ motors
FIRMWARE	VESC based motor control and firmware modified by EBMX
OPERATING TEMPERATURE RANGE	-25 to 80 Degrees Celsius
Kit Contents	X-9000 Controller Air Cooled Heat Sink (Black) SW102T Color Display Thumb Throttle Bluetooth Module 1-2 Harness
WATERPROOFING	IP67
WARRANTY	2 Years
HEAT SINK COLORS	Black / Red / White / Blue
