How to Choose Air-Cooled Motor Upgrades for Your Ultra Bee
Choosing air-cooled motor upgrades for your Ultra Bee starts with fitment and controller pairing. Compare options and learn what to check before you buy.
Last Updated: October 27, 2026
Quick Summary
Choose air-cooled motor upgrades by confirming fitment first: the VTB 48 kW Ultra Bee Motor is a direct drop-in replacement with a 48-100V working voltage, ABZ+PWM 1024-pulse encoder, NTC 10k thermistor and 1100A max phase current. Match your controller to those specs, then manage heat with gearing, airflow and current limits.
- Motor temperature limiting starts at 130 deg C and power cut occurs at 150 deg C.
- The motor carries an IP67 waterproof rating, but square connectors risk water leaking in.
- Log baseline motor temperature, then change one variable at a time and compare peak and time-to-peak.
- Suspension, wheels and brakes should come before a motor swap on most builds.
- The motor pairs with a VTB V9600 controller to turn an Ultra Bee into a 48 kW machine.
Table of Contents
- What Air-Cooled Motor Upgrades Actually Change on an Ultra Bee
- Ultra Bee Motor and Controller Compatibility: Check This First
- Why an Air-Cooled Electric Dirt Bike Motor Still Has Thermal Limits
- Planning Your Ultra Bee Controller Upgrade Alongside the Motor
- Upgrades Worth Doing Before You Replace the Motor
- How to Install a Motor Upgrade: Step-by-Step
- Common Mistakes and How to Avoid Them
- Get Your Fitment Checked Before You Order
- Frequently Asked Questions
What Air-Cooled Motor Upgrades Actually Change on an Ultra Bee
The VTB 48 kW Ultra Bee Motor is a direct drop-in replacement for the Sur-Ron Ultra Bee. Its product listing states a peak power of 48 kW, max torque of 68N.m, and working voltage of 48-100V.
What changes in practice:
- Torque off the bottom. More motor torque means the front end lifts easier and technical climbs need less clutch-like throttle feathering.
- Headroom for controller tuning. A stronger motor gives your controller something to feed.
- Heat behavior. More power through the same housing means thermal limits arrive sooner under load.
The Motor Trend coverage of electric off-road drivetrain development tracks how e-moto platforms have shifted toward higher-density stators, which is exactly the direction these drop-in motors take.
Ultra Bee Motor and Controller Compatibility: Check This First
The VTB 48 kW Ultra Bee Motor listing specifies an ABZ+PWM encoder with 1024 pulses, an NTC 10k thermistor, a Nylon M12 circular connection for the V9600 controller, and 8-pin square sensor terminals.
The Four-Point Fitment Check
- Mount pattern and spacing. The product listing describes the VTB motor as a direct drop-in replacement for the Sur-Ron Ultra Bee.
- Sensor connector type. The listing specifies a Nylon M12 circular connection for the V9600 controller and 8-pin square sensor terminals.
- Encoder and thermistor match. The controller has to read the ABZ+PWM encoder and the NTC 10k thermistor correctly. If your controller expects a different encoder resolution or thermistor curve, calibration will fault or the controller will misread motor temperature.
- Phase current ceiling. The product listing states a max phase current of 1100A.
Mounting Points, Wiring and Connectors
The product listing states that the motor has an IP67 waterproof rating and says the square-shape connectors bear higher risks for water leaking in.
Model Year and Generation Differences
Message us before ordering if your bike is not on the product's published fitment list.
What to Have Ready Before You Order
- Your exact model year.
- Your stock controller model number.
- The controller you intend to run.
- A photo of your stock sensor connector.
- Your mount spacing measurement.
Here are the key fitment and spec figures the article says to confirm before ordering.
| Item | Value | Note |
|---|---|---|
| Peak power | 48 kW | VTB 48 kW Ultra Bee Motor |
| Max torque | 68N.m | Stated in product listing |
| Working voltage | 48-100V | Stated in product listing |
| Encoder | ABZ+PWM, 1024 pulses | Controller must read it correctly |
| Thermistor | NTC 10k | Mismatched curve causes misreads |
| Controller connection | Nylon M12 circular | For the V9600 controller |
| Sensor terminals | 8-pin square | Square connectors risk water leaking in |
| Max phase current | 1100A | Stay under this ceiling |
Why an Air-Cooled Electric Dirt Bike Motor Still Has Thermal Limits
The VTB product listing states that motor temperature limiting starts at 130 deg C and power cut occurs at 150 deg C.
The Four Variables That Decide Your Thermal Headroom
Ride duration. Thermal mass buys you time, not immunity. A heavier motor housing takes longer to heat but also longer to cool. Plan recovery time between hard pulls the same way you would plan fuel on a longer ride.
A Practical Heat-Logging Workflow
- Log motor temperature on a baseline ride with your current settings and your normal terrain.
- Note the peak temperature and how long it took to get there. That is your reference point.
- Change one variable at a time, gearing, phase current, or airflow, and repeat the same ride.
- Compare peak temperature and time-to-peak. If peak drops and time-to-peak lengthens, the change helped.
- Only add current when the numbers stay stable across several rides, including a hot day.
The Three Levers for Managing Heat
Heat management on an air-cooled setup comes down to three levers:
- Gearing and load. Taller gearing lowers continuous current draw on climbs.
- Airflow. Clean, unobstructed airflow over the housing matters more than any bolt-on scoop. Mud-packed fins and blocked airflow do more damage than a missing accessory.
- Controller current limits. Capping phase current protects the motor on long sustained pulls. The motor is rated to 1100A max phase current, and staying under that ceiling is the difference between a motor that lasts and one that gets cooked.
What Sustained-Load Limits Mean for Motor Longevity
Repeatedly hitting the 150°C cut is not a one-time inconvenience. Heat cycling stresses insulation and magnets over time, and a motor that spends its life at the limit will not last as long as one that runs with headroom. The practical rule most builders follow: set your controller so your hardest normal ride peaks below the limiting threshold, and treat the 130°C and 150°C numbers as emergency ceilings, not targets. That single habit does more for motor life than any add-on part.
Planning Your Ultra Bee Controller Upgrade Alongside the Motor
The VTB product listing says the motor is paired with a VTB V9600 controller to turn a Sur-Ron Ultra Bee into a 48 kW machine.
What to settle before you buy:
- Phase current ceiling. The motor is rated to 1100A max phase current. Your controller settings should respect that.
- Voltage. The product listing states a working voltage of 48-100V.
- Throttle response. Controller tuning changes how abruptly torque arrives, which matters more than peak output on tight trails.
Upgrades Worth Doing Before You Replace the Motor
Suspension, wheels and brakes should come before a motor swap on most builds. Industry guidance from Throttle Co's 2026 Ultra Bee build notes points to 18/21 wheelsets, upgraded rear shocks and rotor protection as the priorities riders pair with power changes. The reasoning is simple: a faster motor on stock suspension just gets you to the crash sooner.

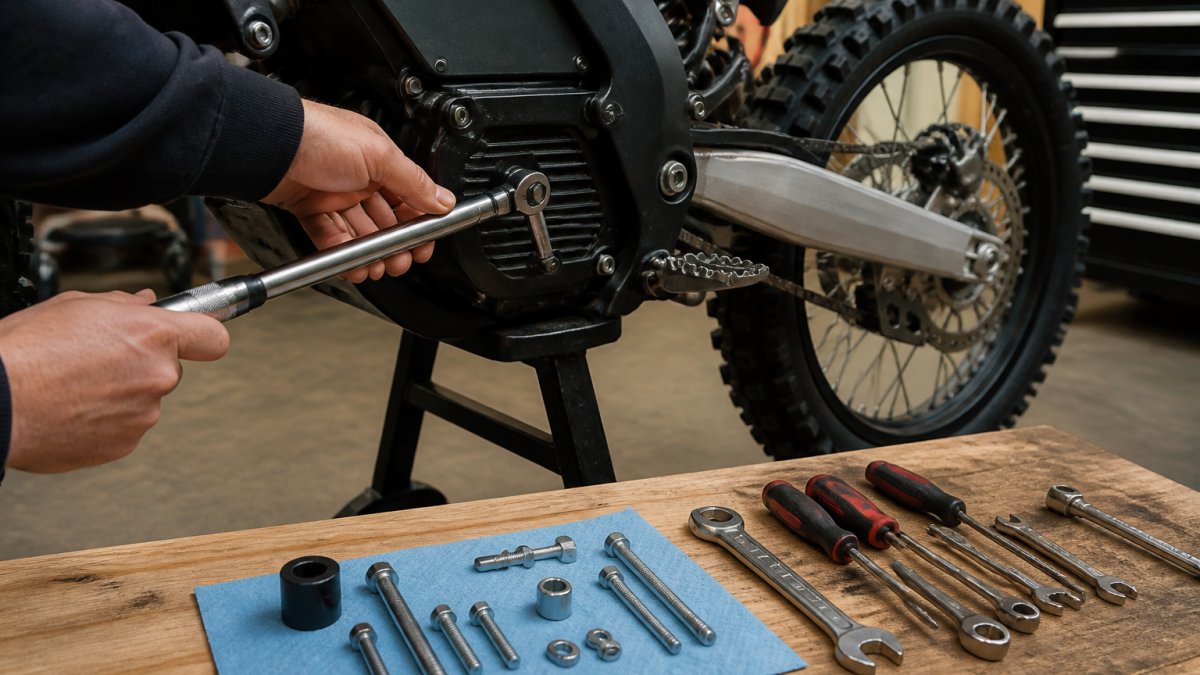

How to Install a Motor Upgrade: Step-by-Step
Expected result: the motor spins cleanly under calibration with no sensor faults and no excessive heat on a short test run.
Common Mistakes and How to Avoid Them
The product listing states that the square-shape connectors bear higher risks for water leaking in.
Other traps worth knowing:
Get Your Fitment Checked Before You Order
RYVOX is an authorized dealer for Arctic Leopard, Yozma and Ventus.
Frequently Asked Questions
Does an air-cooled motor upgrade require a controller upgrade?
The VTB 48 kW Ultra Bee Motor listing says it is paired with a VTB V9600 controller. The VTB Ryuga 81kW Motor listing says it pairs with the VTB AETOS V9600 controller to deliver full power output and sharp throttle response. Check the product listing for fitment information.
How do you confirm motor and controller compatibility for the Ultra Bee?
The VTB 48 kW Ultra Bee Motor listing specifies a Nylon M12 circular connection for the V9600 controller, 8-pin square sensor terminals, and fitment for the Sur-Ron Ultra Bee. The listing also says to message the shop before ordering if your bike is not listed.
What should you check before choosing an Ultra Bee motor upgrade?
The VTB 48 kW Ultra Bee Motor listing specifies a working voltage of 48-100V, a max phase current of 1100A, and a waterproof rating of IP67. The VTB Ryuga 81kW Motor listing describes it as a direct plug-and-play replacement for the Sur-Ron Ultra Bee.
Which Ultra Bee upgrades are worth considering before replacing the motor?
Suspension tuning, wheel geometry and controller software often deliver more usable gains than swapping the motor first. Industry guidance suggests handling and protection components, such as wheelsets, upgraded rear shocks and rotor protection, are prioritized alongside power modifications. If your stock setup already struggles with handling or braking, address those before adding power. A controller upgrade and proper setup can also change how the bike feels without touching the motor.
The difference between a build that holds power all day and one that fades after ten minutes comes down to planning, not parts. RYVOX stocks genuine performance parts, verifies fitment against your exact model and year, and runs an in-house service bay for installs. Get started with RYVOX and build an Ultra Bee that stays fast when the trail gets long.
